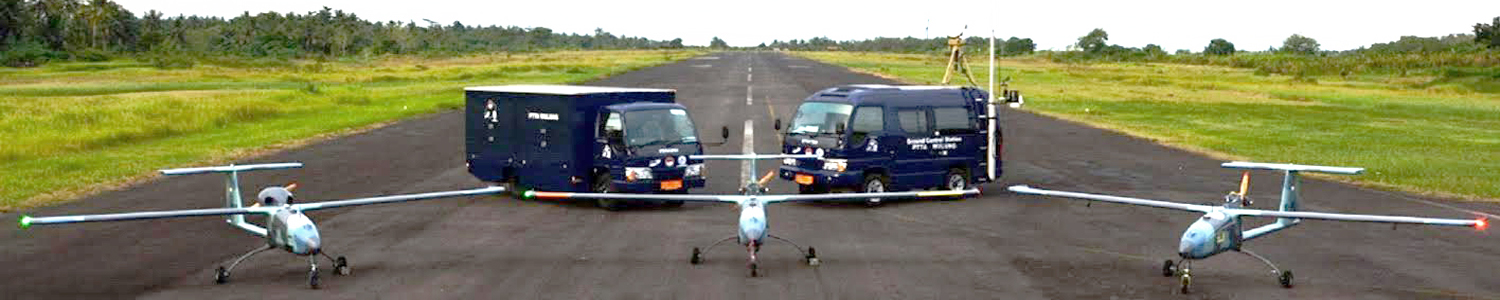

UAV (Unmanned Aerial Vehicle) WULUNG
UAV Wulung is remotely controlled both manually and automatically. It uses composite materials and powered by pusher type single piston engine and it is equipped with single Ground Control Station as central control. Wulung has a capability to perform ISR (Intelligence, Surveillance and Reconnaissance).
PERFORMANCE
| Take-Off ( Sea Level, MTOW ) | ||
|---|---|---|
| Take Off Distance | : | 350 m |
Cruise Speed ISA, 800 ft pressure altitude standard atmosphere at gross weight of 125 Kg) | ||
| Max. Cruise Speed | : | 100 KTAS |
| Operational Speed | : | 60 KTAS |
Landing Distance (ISA, Sea Level Conditions, MLW) | ||
| Landing Distance | : | 350 m |
| Maximum Endurance | : | 4 hr |
| Radius of Operation | : | 120 km |
GEOMETRI
| Overall Length | : | 4.42 m |
| Overall Height | : | 1.48 m |
| Max. Fuselage Width | : | 0.40 m |
| Wing Span | : | 6.34 m |
| Wheel Base | : | 1.44 m |
| Wheel Track | : | 1.60 m |
WEIGHT
| Max. Take Off Weight(MTOW) | : | 125 Kg |
| Basic Empty Weight | : | 65 Kg |
| Max. Fuel | : | 32 Kg |
| Max. Payload | : | 35 Kg |
